Carbon Steel Fixed Bollards
Pour In-Place [Non-Removable]
Carbon Steel are the most commonly used bollards. The bollards create a physical barrier to protect pedestrians and buildings from oncoming vehicles, yet still allow free movement in between the bollards.
Model SUP 12-75

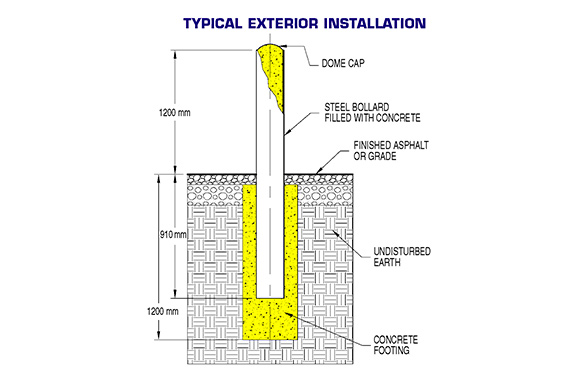

- Installation: Pour In-Place
- Material: Carbon Steel
- Diameter: 325mm [12-3/4"] OD
- Thickness: 9.5mm [3/8"]
- Above ground: 1200mm [48"]
- Below ground: 1000mm [36"]
- Weight: 158 kg. [347 lbs.]
- Shown with: Carbon Steel Finish
Model SUP 6-58
- Installation: Pour In-Place
- Material: Carbon Steel
- Diameter: 170mm [6-5/8"] OD
- Thickness: 6mm [1/4"]
- Above ground: 1200mm [48"]
- Below ground: 1000mm [36"]
- Weight: 54 kg. [120 lbs.]
- Shown with: Red Oxide Primer Finish
Model SUP 3-5
- Installation: Pour In-Place
- Material: Carbon Steel
- Diameter: 90mm [3-1/2"] OD
- Thickness: 6mm [1/4"]
- Above ground: 1200mm [48"]
- Below ground: 1000mm [36"]
- Weight: 23.5 kg. [52 lbs.]
- Shown with: Chrome Plated Finish
Model SUP 8-58
- Installation: Pour In-Place
- Material: Carbon Steel
- Diameter: 220mm [8-5/8"] OD
- Thickness: 6mm [1/4"]
- Above ground: 1200mm [48"]
- Below ground: 1000mm [36"]
- Weight: 90 kg. [200 lbs.]
- Shown with: Safety Yellow Paint Finish
Model SUP 4-5
- Installation: Pour In-Place
- Material: Carbon Steel
- Diameter: 115mm [4-1/2"] OD
- Thickness: 6mm [1/4"]
- Above ground: 1200mm [48"]
- Below ground: 1000mm [36"]
- Weight: 36 kg. [80 lbs.]
- Shown with: Hot Dipped Galvanized Finish
Available Options
- Carbon Steel Finish
- Red Oxide Primer Finish
- Safety Yellow Finish
- Hot Dipped Galvanized Finish
- Chrome Plated Finish
- Crash Rated
- Custom Sizes
- Custom Sleeves
- Reflective Tape
- Custom Colours
